Descrizione
CARATTERISTICHE HARDWARE
Interfaccia:
– 2 10/100/1000Mbps RJ45 Port
– AUTO Negotiation/AUTO MDI/MDIX
– 1 48VDC POWER INPUT PORT
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
– EIA/TIA-568 100Ω STP (Max 100m)
– 100BASE-TX: UTP category 5, 5e cable (Max 100m)
– EIA/TIA-568 100Ω STP (Max 100m)
– 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Alimentazione: 15.4W (Max. 48VDC)
Indicatore LED: PWR
Dimensioni ( L x P x A ): 3.2*2.1*0.9 in.(80.8*54*24 mm)
CARATTERISTICHE SOFTWARE
Funzionalità di base:
– Compatible With IEEE 802.3af Compliant PDs
– Delivers Power Up To 100 Meters
– Auto-Determine The Necessary Power Requirements
ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:

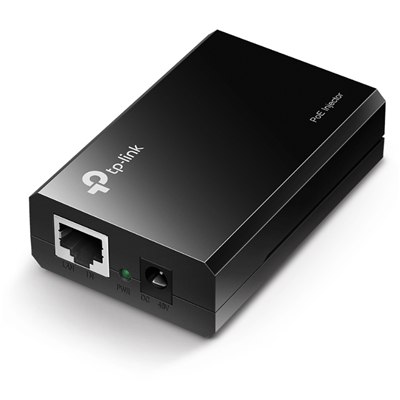

– Gigabit PoE Injector TL-POE150S
– Power Adapter
– RJ45 Cable
– Installation Guide
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Ambiente:
– Operating Temperature: 0℃~40℃ (32℉~104℉)
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
