Descrizione
WIRELESS
Standards:
– Wi-Fi 5
– IEEE 802.11ac/n/a 5 GHz
– IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds:
– AC1900
– 5 GHz: 1300 Mbps (802.11ac)
– 2.4 GHz: 600 Mbps (802.11n)
WiFi Range:
– 3 Bedroom Houses
– 4× Fixed High-Performance Antennas
– Multiple antennas form a signal-boosting array to cover more directions and large areas
– Beamforming
– Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity:
– Media
– Dual-Band
– Assegna dispositivi alle bande disponibili per ottenere prestazioni ottimali
– 3×3 MU-MIMO
– Connessioni simultanee con dispositivi dotati di tecnologia MU-MIMO
– Airtime Fairness
– Aumenta l’efficienza della rete assegnando la stessa disponiblità di tempo a tutti i dispositivi, anche quelli più lenti dotati di standard Wi-Fi obsoleto
Working Modes:
– Modalità Router
– Modalità Access Point
HARDWARE
Processor: 1.2 GHz CPU
Ethernet Ports:
– 1× Porta Gigabit WAN
– 4× Porte Gigabit LAN
Buttons:
– Tasto WPS/Wi-Fi
– Tasto Power On/Off
– Tasto Reset
Power: 12 V ⎓ 1 A
SICUREZZA
WiFi Encryption:
– WPA
– WPA2
– WPA3
– WPA/WPA2-Enterprise (802.1x)
Network Security:
– SPI Firewall
– Controllo accessi
– IP & MAC Binding
– Application Layer Gateway
Guest Network:
– 1× Rete Ospiti 5 GHz
– 1× Rete Ospiti 2.4 GHz
SOFTWARE
Protocols: IPv4, IPv6
OneMesh™: OneMesh™ Supported
Parental Controls:
– Filtro URL
– Limiti di tempo
WAN Types:
– IP Dinamico
– IP Statico
– PPPoE
– PPTP
– L2TP
Quality of Service: QoS per dispositivo
Cloud Service:
– Aggiornamento Firmware OTA
– TP-Link ID
– DDNS
NAT Forwarding:
– Port Forwarding
– Port Triggering
– DMZ
– UPnP
IPTV:
– IGMP Proxy
– IGMP Snooping
– Bridge
– Tag VLAN
DHCP:
– Riserva Indirizzi
– Lista Client DHCP
– Server
DDNS:
– TP-Link
– NO-IP
– DynDNS
Management:
– Tether App
– Pagina Web
PHYSICAL
Dimensions (W×D×H): 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm)
Package Contents:

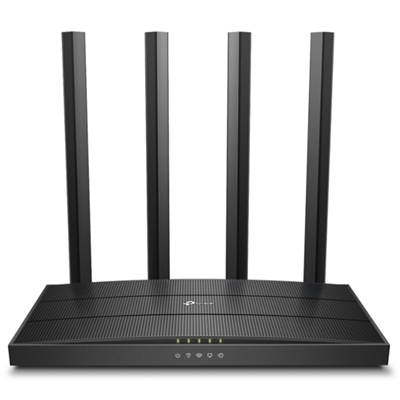

– Wi-Fi Router Archer C80
– Alimentatore
– Cavo Ethernet RJ45
– Guida rapida all’installazione
OTHER
System Requirements:
– Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, o altri browser che supportano JavaScript
– Cable o DSL Modem (se necessario)
– Abbonamento con un Service Provider per l’accesso a Internet
Certifications: FCC, CE, RoHS
Environment:
– Temperatura di Funzionamento: 0℃~40℃ (32℉ ~104℉)
– Temperatura di Stoccaggio: -40℃~70℃ (-40℉ ~158℉)
– Umidità di Funzionamento: 10%~90% senza condensa
– Umidità di Stoccaggio: 5%~90% senza condensa
TEST DATA
WiFi Transmission Power:
CE:
– <20dBm(2.4GHz)
– <23dBm(5.15GHz~5.25GHz)
FCC:
– <30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity:
5GHz:
– 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
– 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
– 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
– 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
– 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
– 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
– 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
