Descrizione
CARATTERISTICHE HARDWARE
Interfaccia: 1× 10/100 M Ethernet Port(RJ45) Support Passive PoE
Tasto: Power On/Off Button, WPS Button, Reset Button
Alimentatore esterno: 9VDC / 0.6A
Standard wireless: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensioni ( L x P x A ): 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)
Tipo di antenna: 2 Fixed Omni-Directional Antennas
CARATTERISTICHE WIRELESS
Frequenza: 2.4 GHz
Signal rate: 300 Mbps at 2.4 GHz
Sensibilità di ricezione:
– 11g 6Mbps: -90dBm
– 11g 54Mbps: -77dBm
– 11n HT20 MC7: -73dBm
– 11n HT40 MC7: -70dBm
Potenza di trasmissione: CE: <15dBm; FCC: <20dBm
Modalità wireless:
– AP Mode
– Multi-SSID Mode
– Client Mode
– Range Extender Mode
Funzionalità wireless:
– Enable/Disable Wireless Radio, WMM, Short GI, AP
– Isolation, Wireless Statistics, Throughput Monitor
Sicurezza wireless: WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
QoS (Quality of Service): WMM
Gestione: SNMP
Funzionalità avanzate: Up to 30 meters Passive PoE is supported
ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:

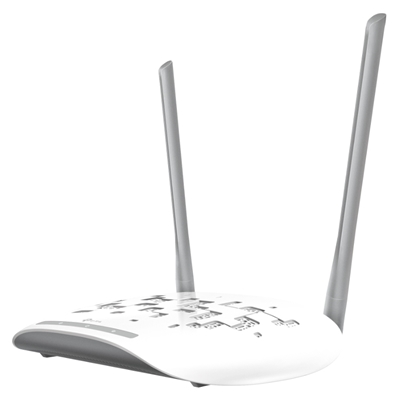

– Wireless Access Point TL-WA801N
– Power Adapter
– Passive PoE Power Injector
– RJ45 Ethernet Cable
– Quick Installation Guide
Requisiti di sistema:
– Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
– NetWare, UNIX or Linux
– Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
– Java-enabled browser
– Cable or DSL Modem
– Subscription with an Internet Service Provider (for Internet access)
Ambiente:
– Operating Temperature: 0°C~40°C (32°F ~104°F)
– Storage Temperature: -40°C~70°C (-40°F ~158°F)
– Operating Humidity: 10%~90% RH
– Storage Humidity: 5%~90% RH
